C-Pro 4K AI
CTC-412/B
Focus on communicating. C-Pro 4K AI will do the rest for you.
The solution with artificial intelligence and PTZ motion
Laia C-Pro 4K AI offers excellent performance and wide compatibility thanks to its multiple and complete connection interfaces and control protocols. The real-time tracking of the speaker through artificial intelligence, as well as its ISP processing technology and algorithms or its X12 optical zoom, make our camera the best solution for your conferences in medium and large rooms. In addition, the impressive 4K UHD image offered by its 1/2.8″ CMOS sensor of up to 60fps together with its autofocus technology.
HDMI Video Output - 3G-SDI - USB3.0 - IP
AI Tracking
4K quality
Multiple protocols
The most complete solution for any environment
The impressive 4k image offered by its 1/2.8" CMOS sensor at up to 30 fps coupled with its autofocus technology, makes our Laia C-Pro one of the highest quality cameras in its segment. AI tracking allows you to move around the room while the camera never loses sight of you for a second.
In addition, with Laia C-Pro 4K AI you will have the possibility of streaming in one click.

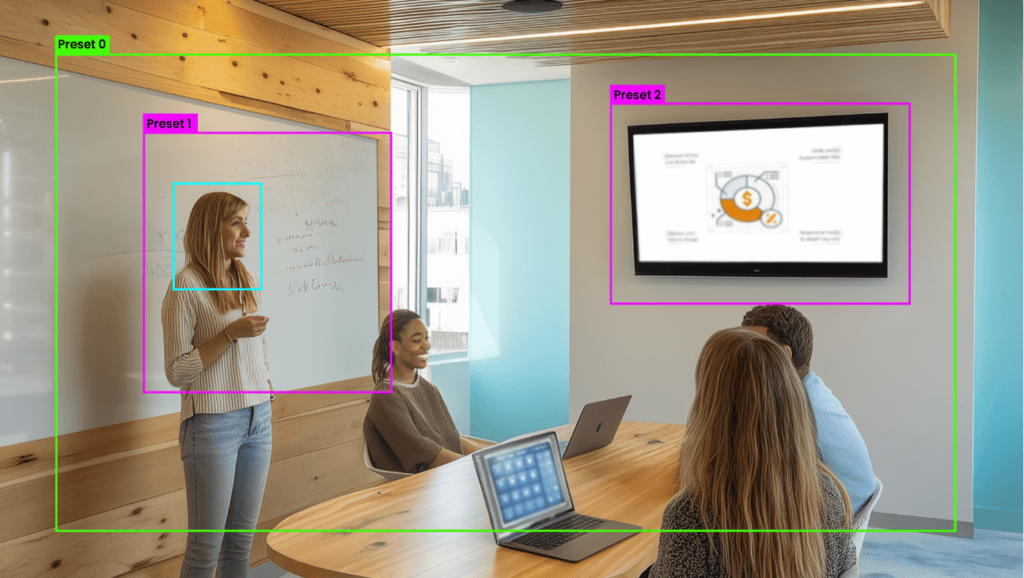

AI tracking so you don't miss a thing

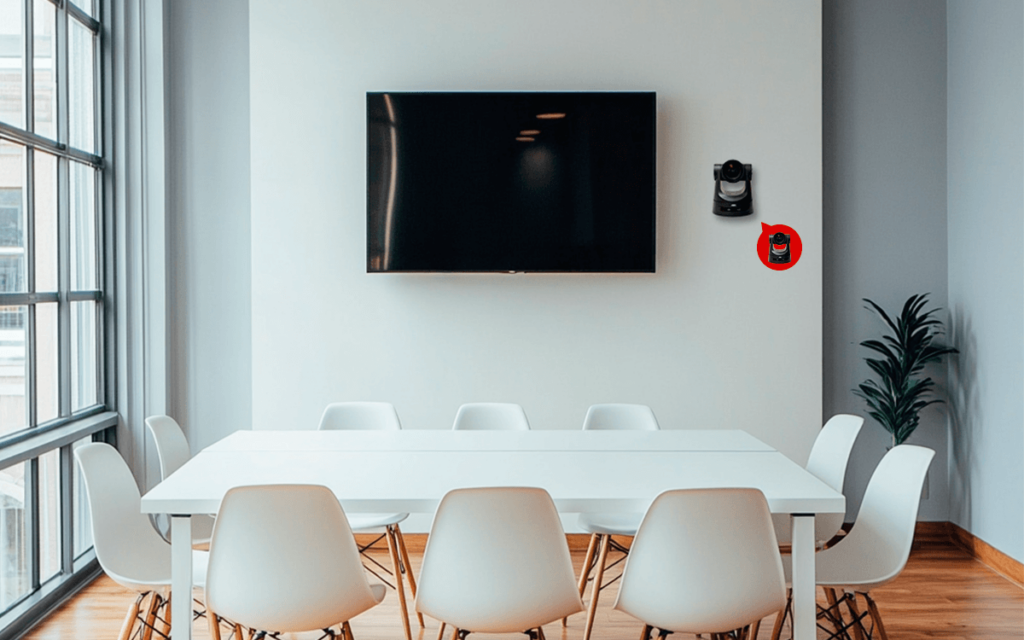

Install our Laia C-Pro 4K AI anywhere and in any position, its AI tracking will do the rest. The built-in software of our Laia C-Pro will automatically detect the speaker's movement to adjust the image display.
Streaming at the click of a button
Broadcasting in 4K is as simple as connecting the camera to a PC/Mac via HDMI, USB or IP and start broadcasting live immediately to streaming platforms such as Wowza or YouTube, in 4K.
Streaming at the click of a button
Broadcasting in 4K is as simple as connecting the camera to a PC/Mac via HDMI, USB or IP and start broadcasting live immediately to streaming platforms such as Wowza or YouTube, in 4K.
The option for large videoconferences

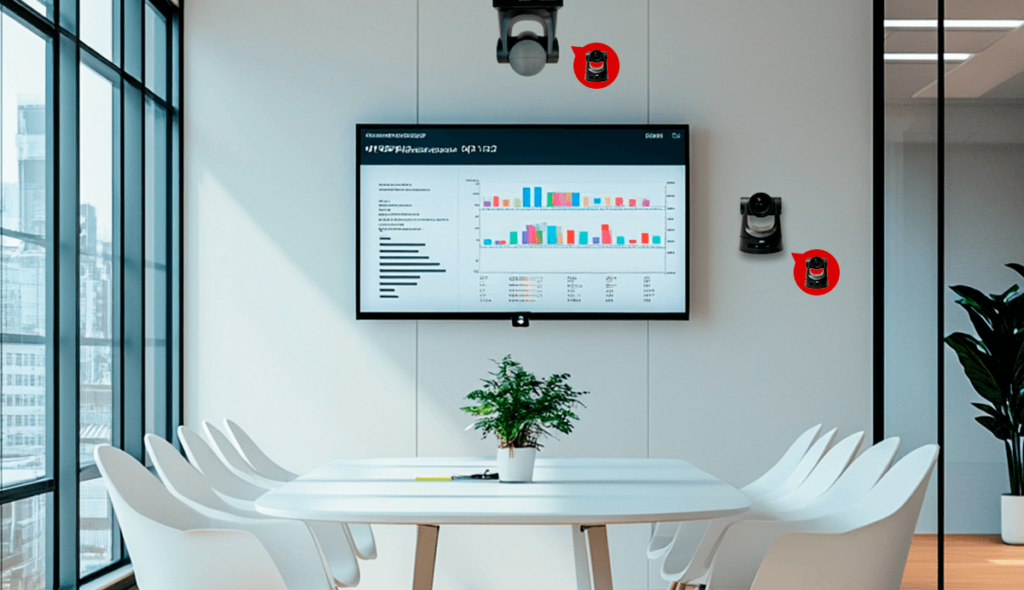

Laia C-Pro 4K AI is perfect for large videoconferencing rooms. This type of rooms are the most technical and difficult to cover as it is essential to have cameras with a high quality zoom. In addition, this type of rooms are perfect for combining Laia with other leading technologies.
Camera features
- 4K image: 1/2.8-inch high quality sensor. Resolution is up to 3840 x 2160@30fps.
- 12x optical zoom lens
- Leading autofocus technology: with an autofocus algorithm, this camera can achieve autofocus with speed, accuracy and stability.
- Multiple control: RS422 and RS232, compatible with cascade mode, perfect and easy to configure.
- Low Noise and SNR: The low-noise CMOS sensor ensures high SNR video performance. Advanced 2D/3D noise reduction technology is used to further reduce noise and ensure good image resolution.
- Multiple network protocol: support ONVIF, GB/T28181, RTSP, RTMP easy to connect to broadcast server (Wowza, FMS), RTMP multicast mode and VISCA network command protocols.
- Supports multiple control protocol: VISCA, PELCO-D, PELCO-P protocols, which can also be automatically recognized.
- Al Tracking: Built-in high-speed processor and advanced image processing and analysis algorithms. Real-time tracking and area tracking modes.
Camera features
- 4K image: 1/2.8-inch high quality sensor. Resolution is up to 3840 x 2160@30fps.
- 12x optical zoom lens
- Leading autofocus technology: with an autofocus algorithm, this camera can achieve autofocus with speed, accuracy and stability.
- Multiple control: RS422 and RS232, compatible with cascade mode, perfect and easy to configure.
- Low Noise and SNR: The low-noise CMOS sensor ensures high SNR video performance. Advanced 2D/3D noise reduction technology is used to further reduce noise and ensure good image resolution.
- Multiple network protocol: support ONVIF, GB/T28181, RTSP, RTMP easy to connect to broadcast server (Wowza, FMS), RTMP multicast mode and VISCA network command protocols.
- Supports multiple control protocol: VISCA, PELCO-D, PELCO-P protocols, which can also be automatically recognized.
- Al Tracking: Built-in high-speed processor and advanced image processing and analysis algorithms. Real-time tracking and area tracking modes.
Privacy covers included
Privacy caps offer peace of mind and security in the digital world, but also protect the camera lens from scratches, dust or dirt.
Related products
Specifications
General
Sensor: 1/2.8" high quality CMOS
Pixel: 8.3M (3840×2160)
Video signal: HDMI: 4KP30, 4KP25, 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P 59.94, 720P29.97; "P" refers to progressive scan. "i" refers to interlaced images. 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94, 720P59.94; USB3.0: YUY2/NV12:1 920x1080P30, 1280x720P30, 1024x576P30, 800x600P30, 800x448P30, 640x360P30, 480x270P30, 320x180P30; MJPEG / H.26 / H.265MJPEG / H.265: 3840x2160P30, 2560x1440P, 1920x1080P30, 1600x896P30, 1280x720P30, 1024x576P30, 960x540P30, 800x600P30, 800x448P30, 720x576P30, 720x480P30, 640×360P30, 640x480P30, 480×270, 320×240P30, 352x288P30, 320xl76P30.USB3.0 Compatible with USB2.0: YUY2/NV12 supports 1920x1080P30, 1280x720P 25, 1024x576P30, 800x600P30,800x448P30, 640x360P30, 480x270P30, 320x180P30; MJ PEG/H.26H .265 supports 3840x2160P30,2560x1440P, 1920x1080P30, 1600x896P30, 1280x720P30 ,1024x576P30, 960x540P30, 800x600P30, 800x448P30, 720x576P30, 720x480P30, 640x360P30, 640x480P30, 480×270, 320x240P30, 352x288P30, 320x176P30
Optical zoom: 12X, Digital Zoom: X15
Angle: Horizontal: 6.5° (N) ~ 70.9° (W)
Iris Aperture: F1.8 ~ F2.8±5%, Iris: F1.8 ~ F11, closed
Minimum Illumination: 0.5Lux(F1.8, AGC on)
DNR: 2D&3D, SNR: >50dB
White balance: Auto/Manual/One-push/Specific color temperature
Focus mode: Auto/Manual/One-push
Shutter speed: 1/25 ~ 1/20000
Dynamic range: Off, 1 ~ 8
Video adjustment: Brightness, hue, saturation, contrast, contrast, sharpness, black & white mode, gamma curve
Privacy caps : Yes
Rear panel
Interfaz: HDMI, 3G-SDI, LAN(POE), USB3.0 (Compatible con USB 2.0), A-IN, RS232-IN, RS232-OUT, RS422 (Compatible con RS485), alimentación DC12V
Salida / formato vídeo: HDMI,3G-SDI,LAN,USB3.0 (Compatible con USB 2.0) / LAN:H.264、H.265 | USB 3.0:MJPG, H264, YUY2, NV12
Entrada / salida audio: Entrada lineal de 3,5 mm de doble canal / HDMI,3G-SDI,LAN,USB3.0. (Compatible con USB 2.0) MC, MP3, G.711A
Puerto red: 10M/100M/1000M Ethernet port, POE power, audio and video output
Protocolo red: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, actualización, reinicio y reset en remoto
Interfaz de control: RS232-IN, RS232-OUT, RS422 compatible con RS485
Protocolo puerto com: VISCA/Pelco-D/Pelco-P;Baud rate: 115200/38400/9600/4800/2400
Alimentación: Adaptador alimentación HEC3800 (DC12V) Entrada: AC110V~AC220V ;Salida: DC12V/2.5A
Voltaje/consumo: DC12V±10% / <12W
PTZ parameters
Tilt / Turn: -170° ~ +170° / -30° ~ +90°
Tilt / Turn speed: 0.1°/s ~ 35°/s // 0.1°/s ~ 30°/s
Preset speed: Turn: 35°/s, Tilt: 30°/s
Preset quantity: Up to 255 (10 in remote control)
Other parameters
Storage/use temp.: -10°C ~ +70°C / -10°C ~ +50°C
Storage/use humidity: 20% ~ 95% / 20% ~ 80%
Dimensions: 143(L)mm*176mm(W)*169mm(H)
Weight: 1.3 Kg
Bracket: Wall bracket included
Cable: RS232 200 cm, USB 3.0 150 cm
